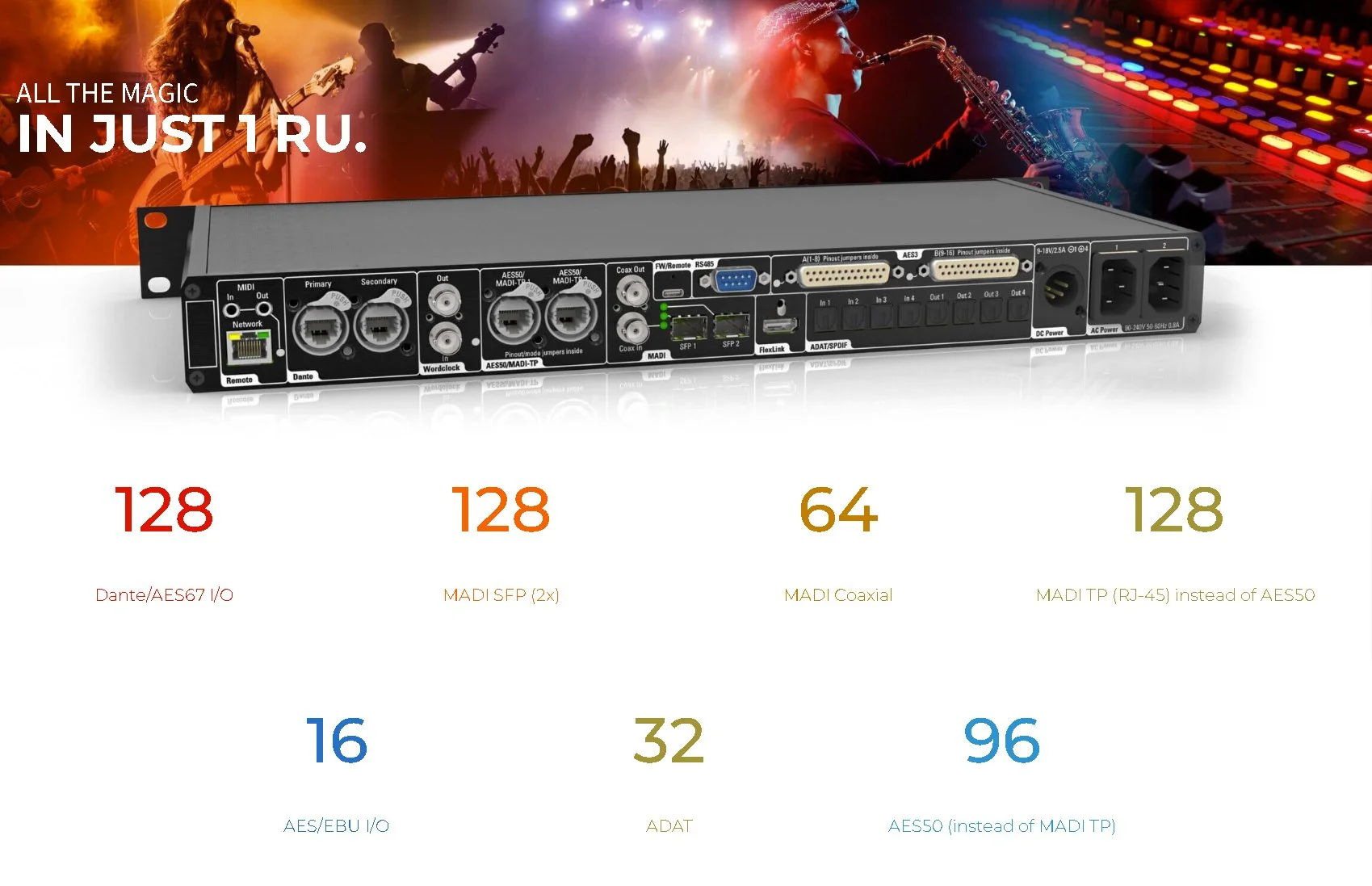

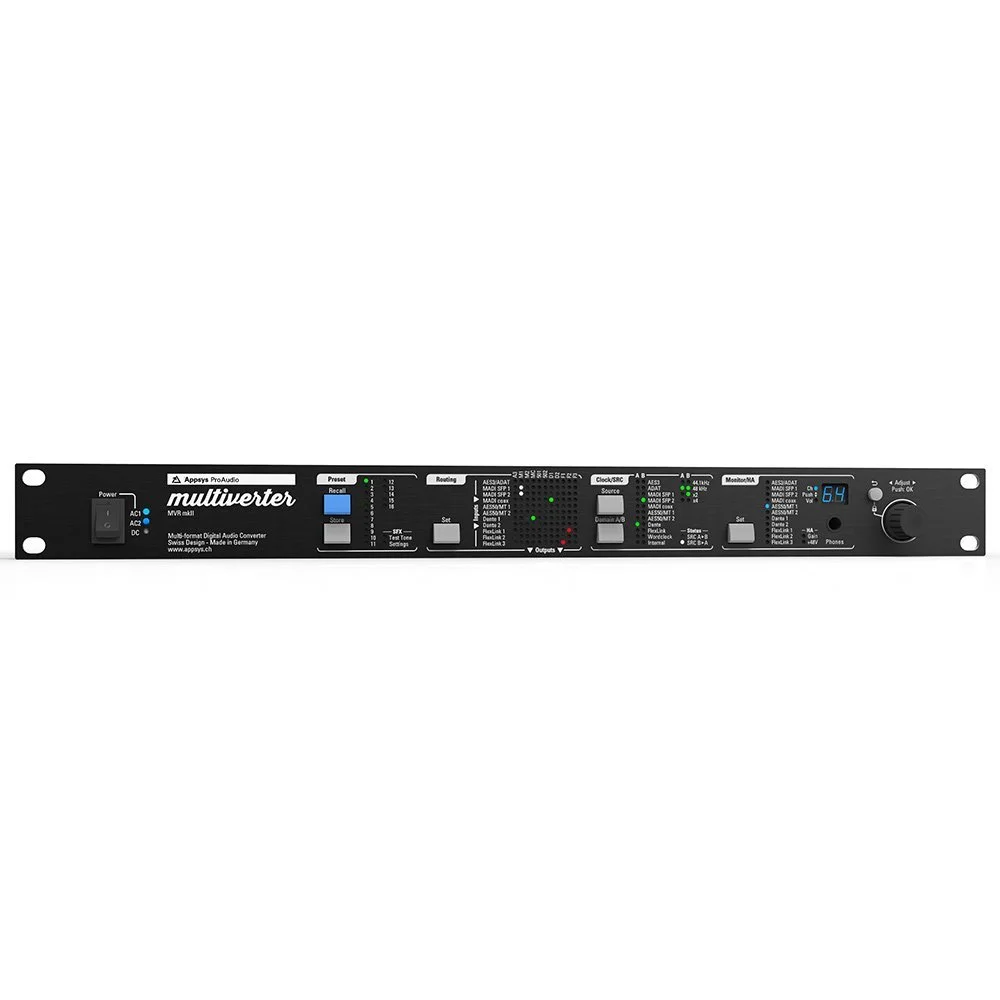

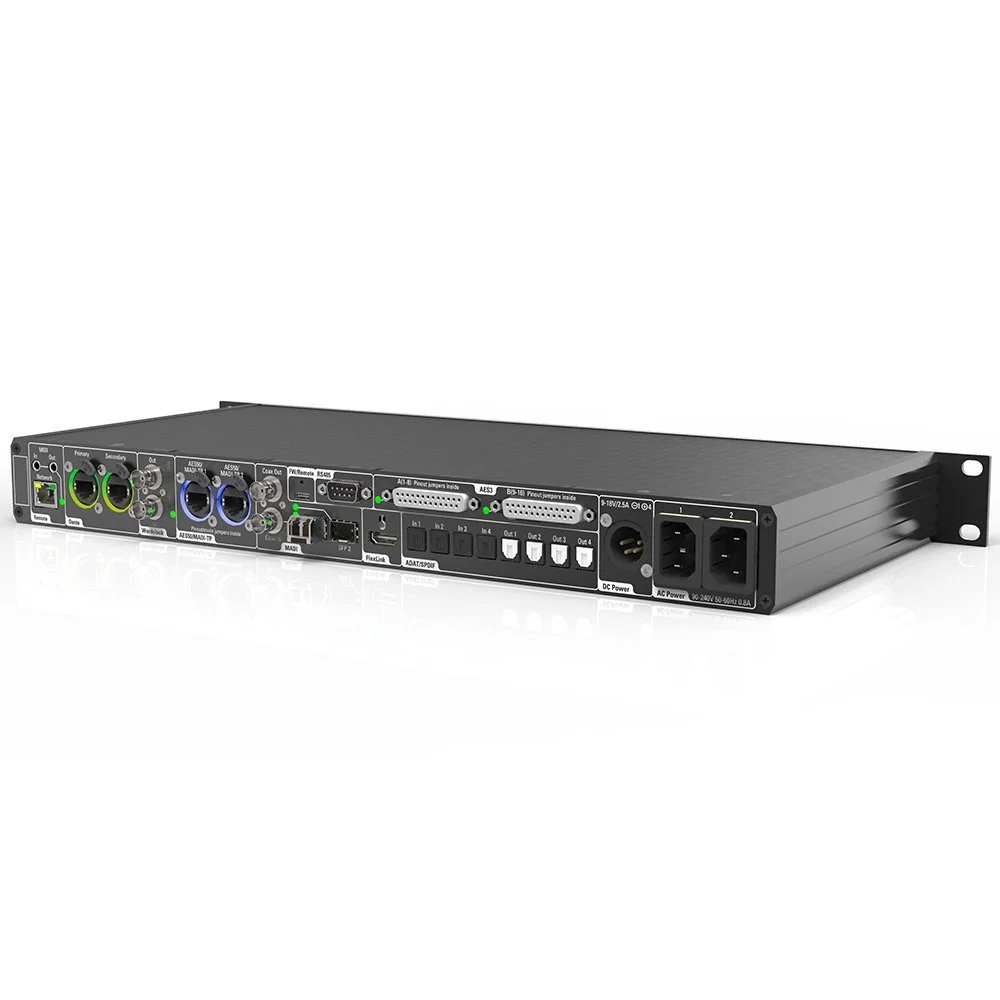

Appsys Multiverter MVR-64 II: 704×704 CHANNEL UNIVERSAL FORMAT CONVERTER
Appsys Multiverter MVR-64 II: 704×704 CHANNEL UNIVERSAL FORMAT CONVERTER
FREE SHIPPING and NO TAX COLLECTED!
The evolution of the world's most versatile format converter
The Appsys ProAudio Multiverter MVR mkII is designed to meet all of your digital audio conversion needs!
Now into its second generation, this unique piece of hardware is able to convert between many different digital audio interfaces and formats - any to any, all at once.
The Multiverter mkII is packed with features like channel-wise-routing, web interface, sample rate conversion, headamp remote control and much more.
And if you're an MVR-64 (old model) user: All firmware features of the new model will also be back-ported as long as the hardware allows it!
THE AUDIO UNIVERSE. COMBINED IN ONE DEVICE.
What the multiverter will do for you:
Interface your recording gear to any digital signal source.
Adds any format to your production truck or OB.
704×704 channel-wise routing between all interfaces (192×192 on FlexLink).
Dante<>Dante bridging of different networks with optional sample rate conversion (up to 64ch 96k<>48k bidirectional, 128x0ch unidirectional)
Use your ethernet port as 64×64 recording interface with the Dante® Virtual Soundcard technology
Sample-rate conversion between any interfaces using the additional SRC-64 plugin module.
Send and receive low-latency, 64×64 audio over your standard ethernet networks.
Lifts your legacy gear up to date.
Dante/AES67 (two ports/integrated switch)
16 x AES/EBU I/O (DB-25)
4 x ADAT I/O, SPDIF/AES3 optical capable
MADI SFP (2x) for optical Multimode/Singlemode
MADI coaxial
MADI-TP (up to two ports) – int. switch to AES50
AES50 (up to two ports) – int. switch to MADI TP
USB C port for Remote control
FlexiLink port for breakout-box connection with Flexiverter boxes:
AVB (64 x 64 channels)
AES3 <> All formats with optional SRC
MADI <> MADI bi-directional, 64 Ch. @ 96k MADI SRC
Dante <> Dante SRC
Dante <> MADI 128 Ch.
AES50 <> All formats with optional SRC
Audio Interfaces
AES3 (16x16ch)
ADAT (4x), SPDIF/AES3 optical
MADI SFP (2x), supports Ferrofish SFP Coax
MADI coaxial
AES50 (up to 2 ports)
MADI-TP (up to 2 ports)
Dante
up to 192 extra channels via Flexiverter breakout boxes connected to the FlexLink port
Clocking Options
Supports 44.1...192 kHz operation
ClockShield™ technology allows clickless operation during up to 1s clock dropouts
Optional Sample Rate Conversion
Other things to mention
Preset store/recall (16 different setups)
Jumperable pinout for AES3 (Tascam/Yamaha) and AES50/MADI-TP ports
Test tone generator simplifies troubleshooting of complex setups
Triple-redundant power supply (2x 90-240VAC, 1x 9-18VDC)
Can be powered alone from industry standard 4-pin XLR plug battery packs
Separate network control port
MIDI and RS485 embedding/de-embedding from MIDI/RS485 jacks into MADI streams (RME™/DirectOut™-compatible)
Transparent forwarding of MADI control data (i.e. headamp control, MIDI over MADI)
Optional: Add Sample Rate Conversion to your Multiverter with the Appsys ProAudio SRC-64 Card
The Appsys ProAudio SRC-64 add-on module adds the capability of asynchronous sample rate conversion to your Appsys Multiverter.
Designed as an internal add-on module, it leaves the "Extension" port available for the Flexiverter break-out boxes.
