Hum Audio N-Closure 2 Channel Strip Rack








Hum Audio N-Closure 2 Channel Strip Rack
The Hum Audio N-Closure 2 Channel Strip Rack features two channels of the renowned N-Strip from the N-Trophy Analog Console, in a modular design.
Description (from Hum Audio Devices)
Back to The Nature of Sound. Carefully handcrafted in Poland.
A beautiful and inspiring classic look is combined with an innovative approach to working on analog console. N‑Trophy is an exceptional console in so many aspects, like never before. It removes digital ’junk’, and brings life, vitality, air, space and depth back to your tracks. It brings back the pleasant feeling of communing with what is close to every human being by nature꞉ the beauty of analogue sound. Truly, the N‑closure channel strips give you a ’Back to The Nature of Sound’ experience.
How’d do it? The secret behind the N‑Trophy

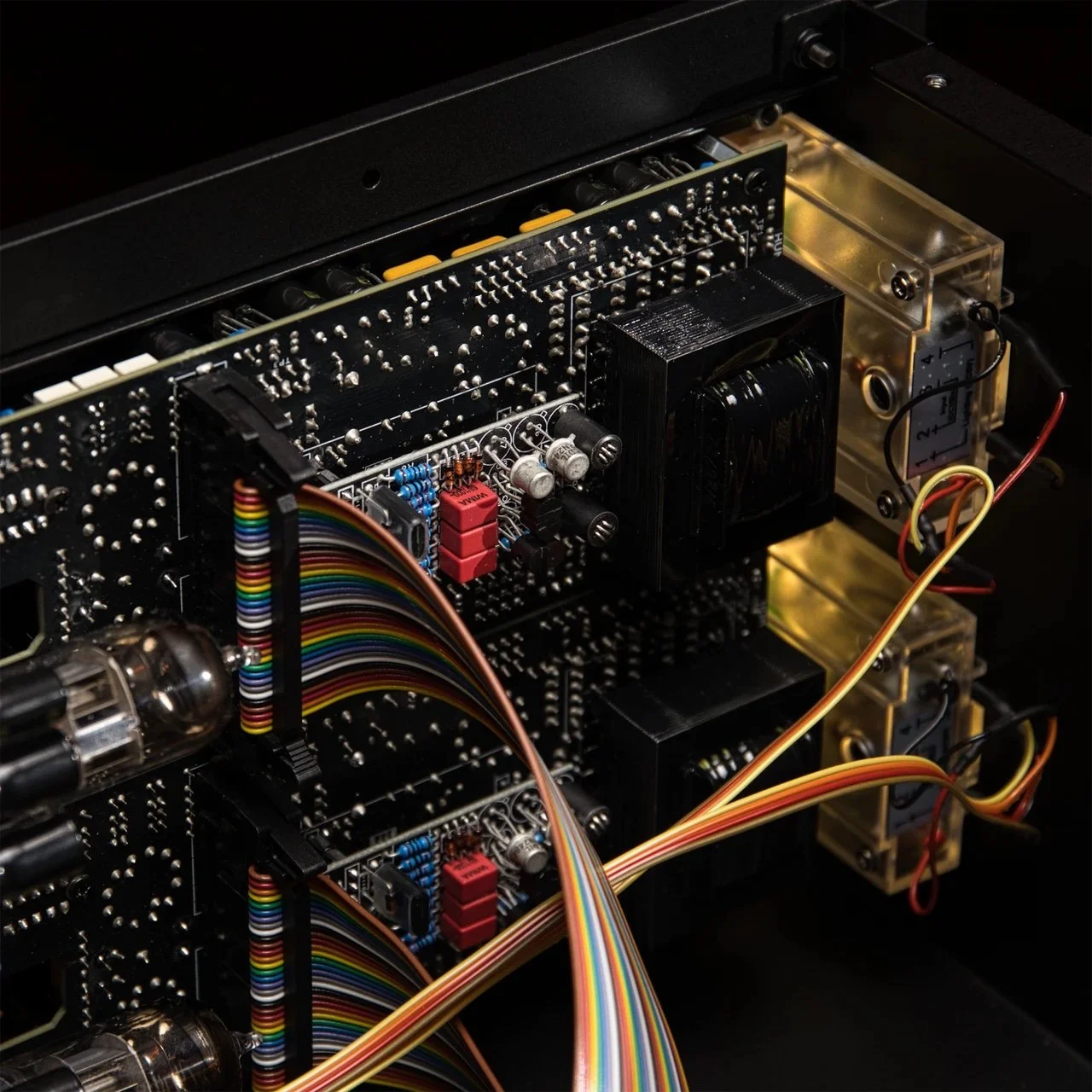

We designed High‑End discrete class A mic preamps, custom audio transformers and discrete opamps, as well as unique six‑band passive EQ, THD Stage, and the Tube Optical Compressor / Limiter with innovative detection and compression circuits that work differently than ones found in other studio equipment. At the same time, we eliminated all points where classic analog consoles used to be weak or overcomplicated. The signal path is also as short as it can be, despite the plenty of N‑Trophy’s and N‑closure’s sound shaping tools.
We designed High‑End discrete class A mic preamps, custom audio transformers and discrete opamps, as well as unique six‑band passive EQ, THD Stage, and the Tube Optical Compressor / Limiter with innovative detection and compression circuits that work differently than ones found in other studio equipment. At the same time, we eliminated all points where classic analog consoles used to be weak or overcomplicated. The signal path is also as short as it can be, despite the plenty of N‑Trophy’s and N‑closure’s sound shaping tools.

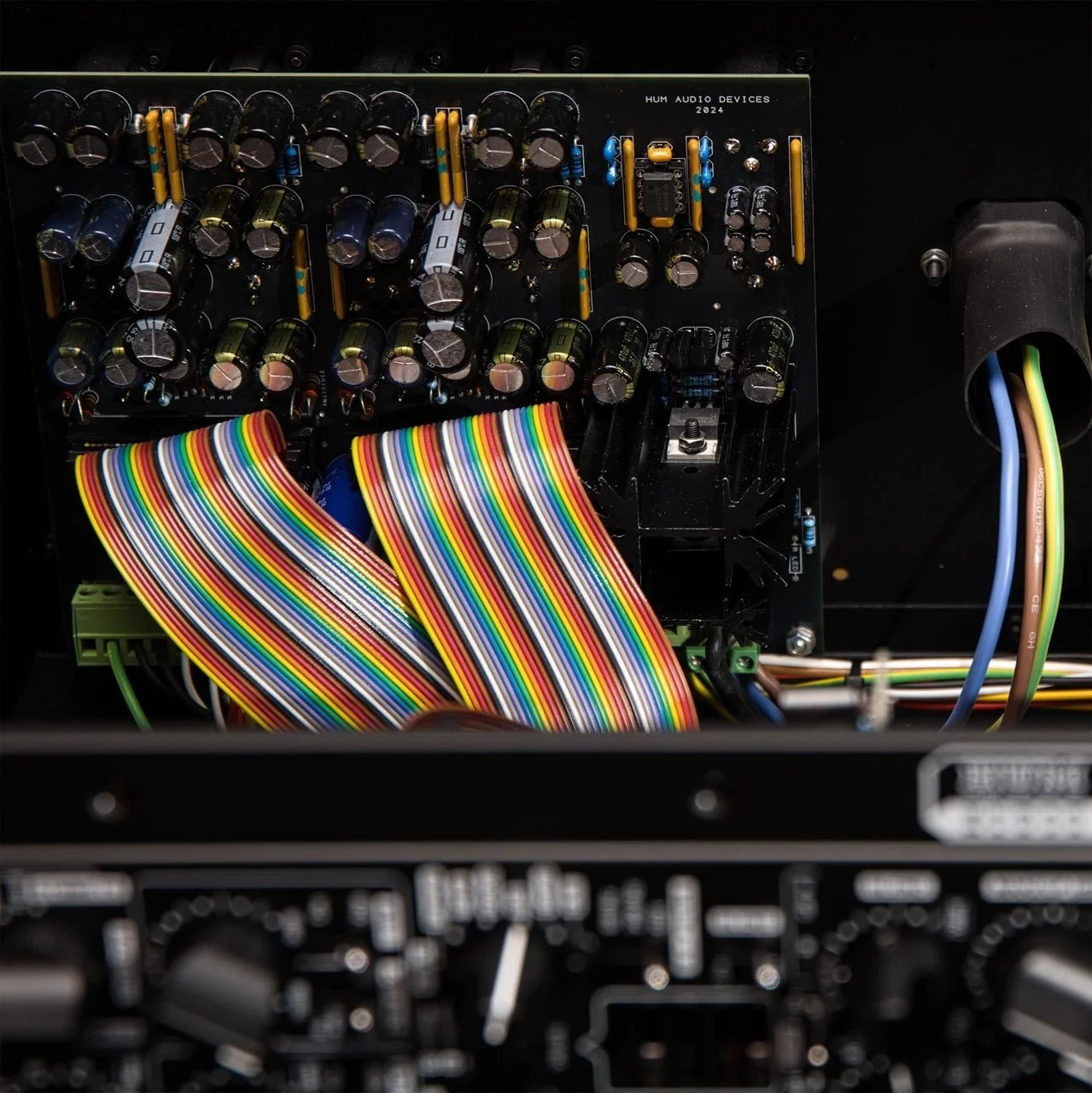

To complete the N‑Trophy and N‑closure design, we have also taken special care to develop the classic linear power supply with a custom double‑shielded toroidal transformer and the best Linear Technology voltage regulators. The transformer here is acting as a power conditioner, ensuring large headroom and very low noise performance.

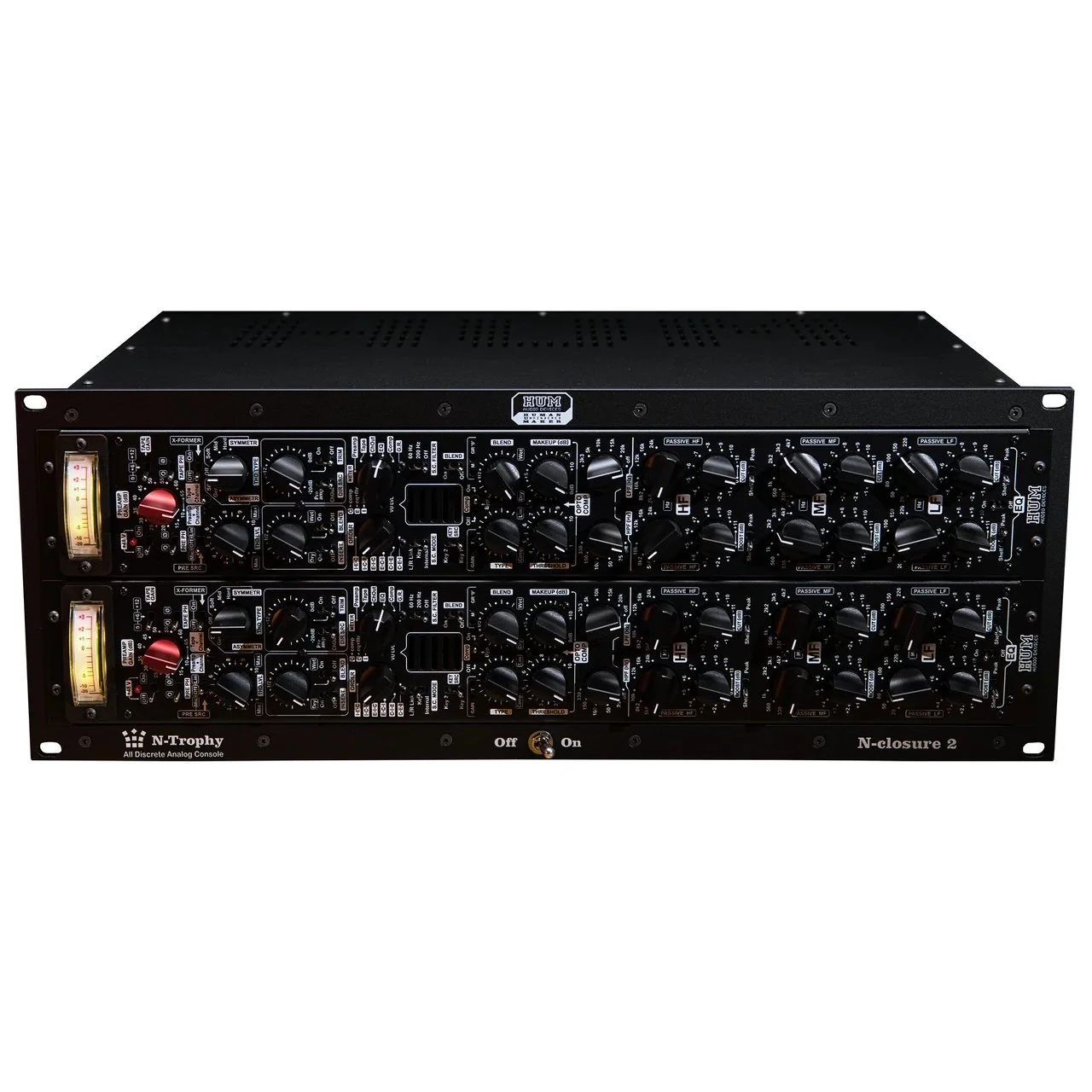

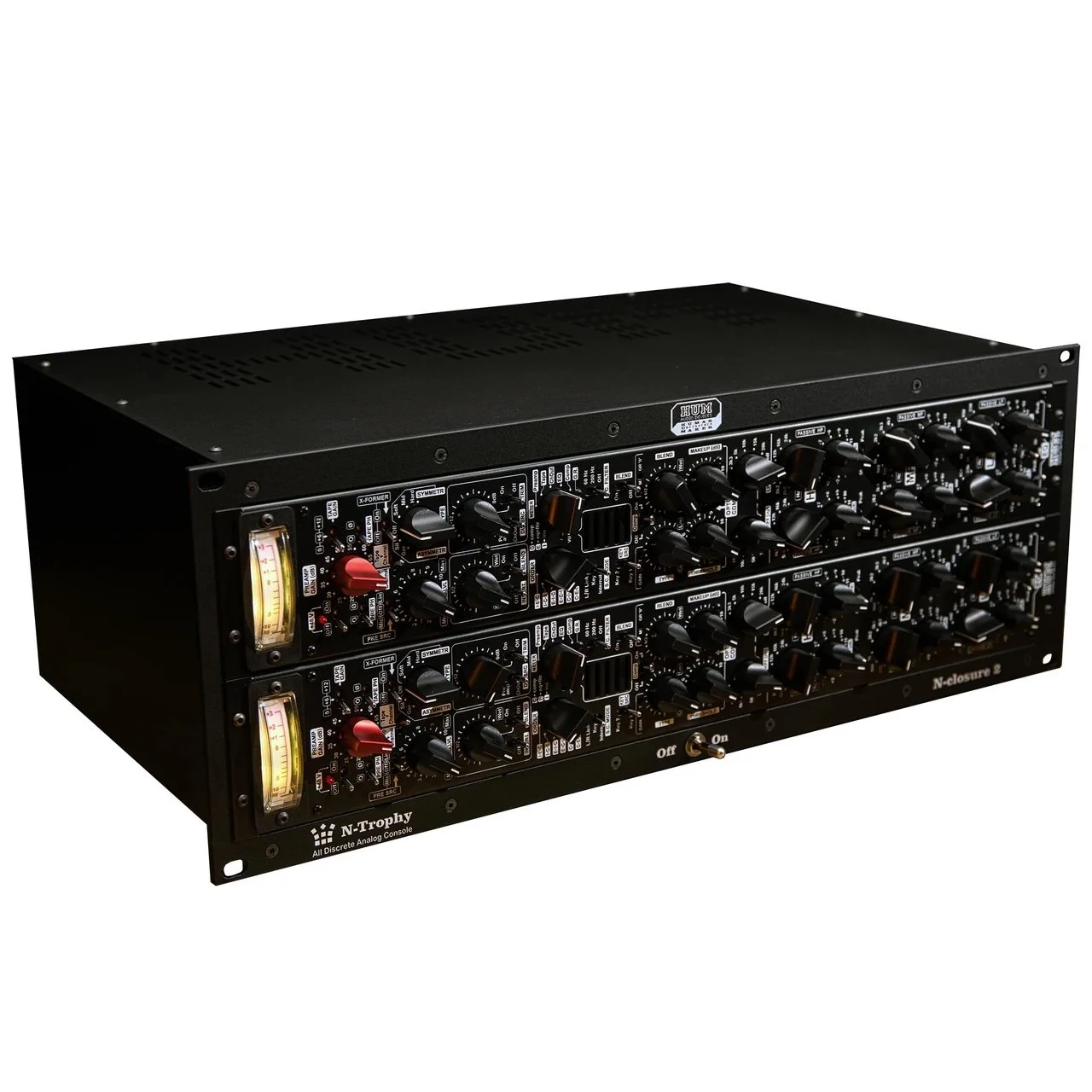

Each Hum Audio N-Closure Channel Features:
Top quality VU Meters with excellent ballistics.
PREAMP GAIN (db): Gain switch for the selected signal input.
+48 V: Phantom power switch for condenser mics.
TAPE GAIN: 0/+6/+12dB switch for TAPE IN input signal.
PRE SRC: Input source for the preamp꞉ Mic/Off/Line.
PRE PH / TAPE PH: Phase reverse switches for Mic/Line/Instr inputs and TAPE IN (line level) signals.
Preamp + Channel / Tape + Channel: Select channel’s physical input.
X-FORMER: Switch for the interstage audio transformer located after the mic preamp.
THD LVL / THD TYPE: Select type and level of saturation.
DIR SRC: Select the audio output point for DIR OUT꞉
– Preamp ‑ after the preamp, before processing
– ChOut ‑ after all sound processing in the channel
TRIM: Pot for additional trim level of DIR OUT (direct output) signal, with on/off switch.
INSERT / BLEND: Insert switch and insert dry/wet blend pot with switch. When the BLEND switch is set to off, the channel insert point signal is 100% wet.
ORDER: Select processig order꞉C (Compressor), E (EQ + filters), I (Insert).
METER: Select the metering point for the VU Meter. G.R. ‑ Gain Reduction of the Compressor.
S.C. MODE: Compressor sidechain mode꞉ Internal, L/R Link (stereo link), Key for external key inputs.
KEY SRC: Select KEY1 of KEY2 for sidechain inputs
S.C. FILTER: The cutoff frequency for detection circuit in Internal sidechain mode.
Comp: Switch in OPTO COMPRESSOR. In Byp mode the compressor is bypassed, but the tube is still active.
TYPE: Select compressor characteristics, from Comp (slow) to Lim (fast).
THRESHOLD: Compression depth. Attack and release depends on the gain reduction depth.
BLEND: dry/wet mix balance of compressed and uncompressed signal.
MAKEUP (db): Gain Makeup ‑ signal level boost after compression. Tube circuit.
LPF (Hz): Low pass filter, frequency selection with stepped rotary switch. 6dB/oct slope.
HPF (Hz): High pass filter, frequency selection with stepped rotary switch. 6dB/oct slope.
HF: High‑frequency passive EQ, independently selectable frequencies for BOOST and CUT. Equipped with stepped rotary switches. Gently overlapping (6dB/oct).
BOOST (dB): Amount of boost (dB) for HF band.
CUT (dB): Amount of cut (dB) for HF band.
Shelf/Peak switches for BOOST an CUT.
MF: Mid‑frequency passive EQ, independently selectable frequencies for BOOST and CUT.
Equipped with stepped rotary switches. Gently overlapping (6dB/oct).
Amount of boost (dB) for MF band.
Amount of cut (dB) for MF band.
LF: Low‑frequency passive EQ, independently selectable frequencies for BOOST and CUT.
Equipped with stepped rotary switches. Gently overlapping (6dB/oct).
Amount of boost (dB) for HF band.
Amount of cut (dB) for HF band.
Shelf/Peak switches for BOOST an CUT.
EQ: On/Off switch for the channel EQ circuits.
Specifications
Measured with the Prism D‑Scope III Audio Analyzer.
Audio voltage rail꞉ +/‑ 24V
Self Noise A‑weighted꞉ ‑105 dBV
THD+N꞉ 0.005% (1kHz / 1dBV)
Frequency Response꞉ 20Hz ‑ 30kHz (+/‑ 0.16dB) | ‑0.3dB @ 50kHz | ‑1.2dB @ 100kHz | ‑3.8dB @ 200kHz| ‑0.07dB @ 10Hz | ‑0.3dB @ 5Hz |
Phase L/R Matching꞉ max 0.8 deg (10Hz ‑ 30kHz)
CMRR꞉ ‑65dB
Max Input Level꞉ +22dBV
Max Output Level꞉ +28dBV

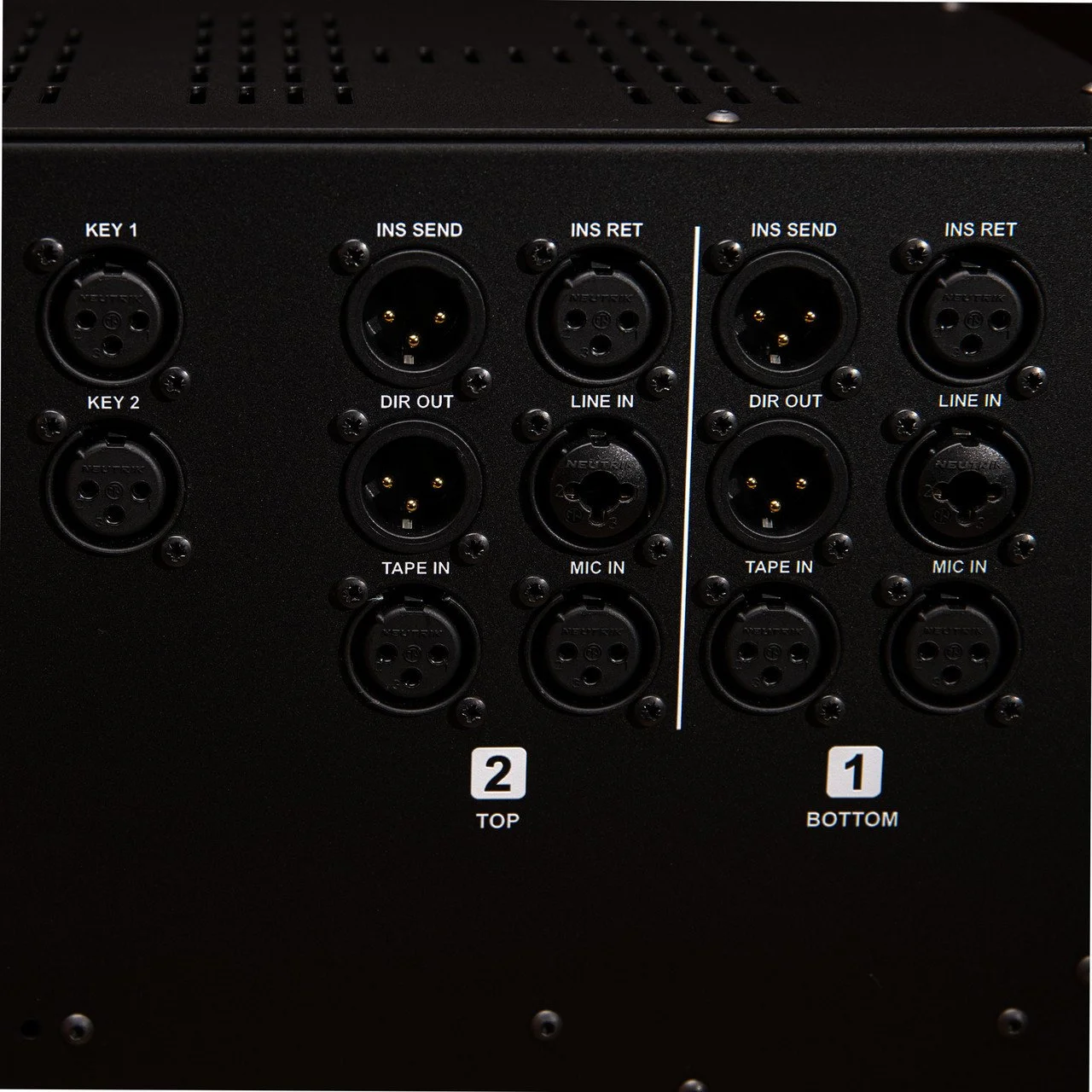

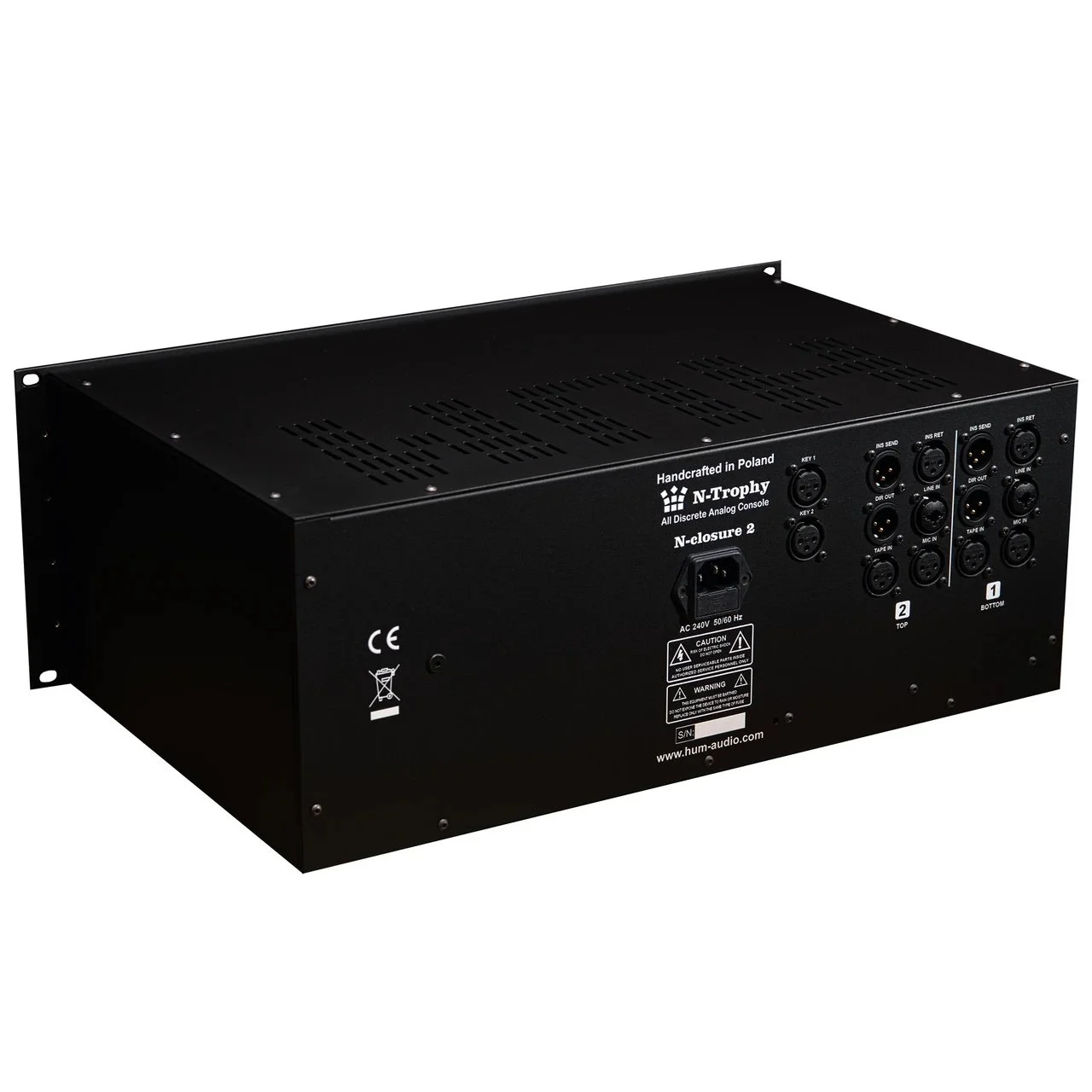

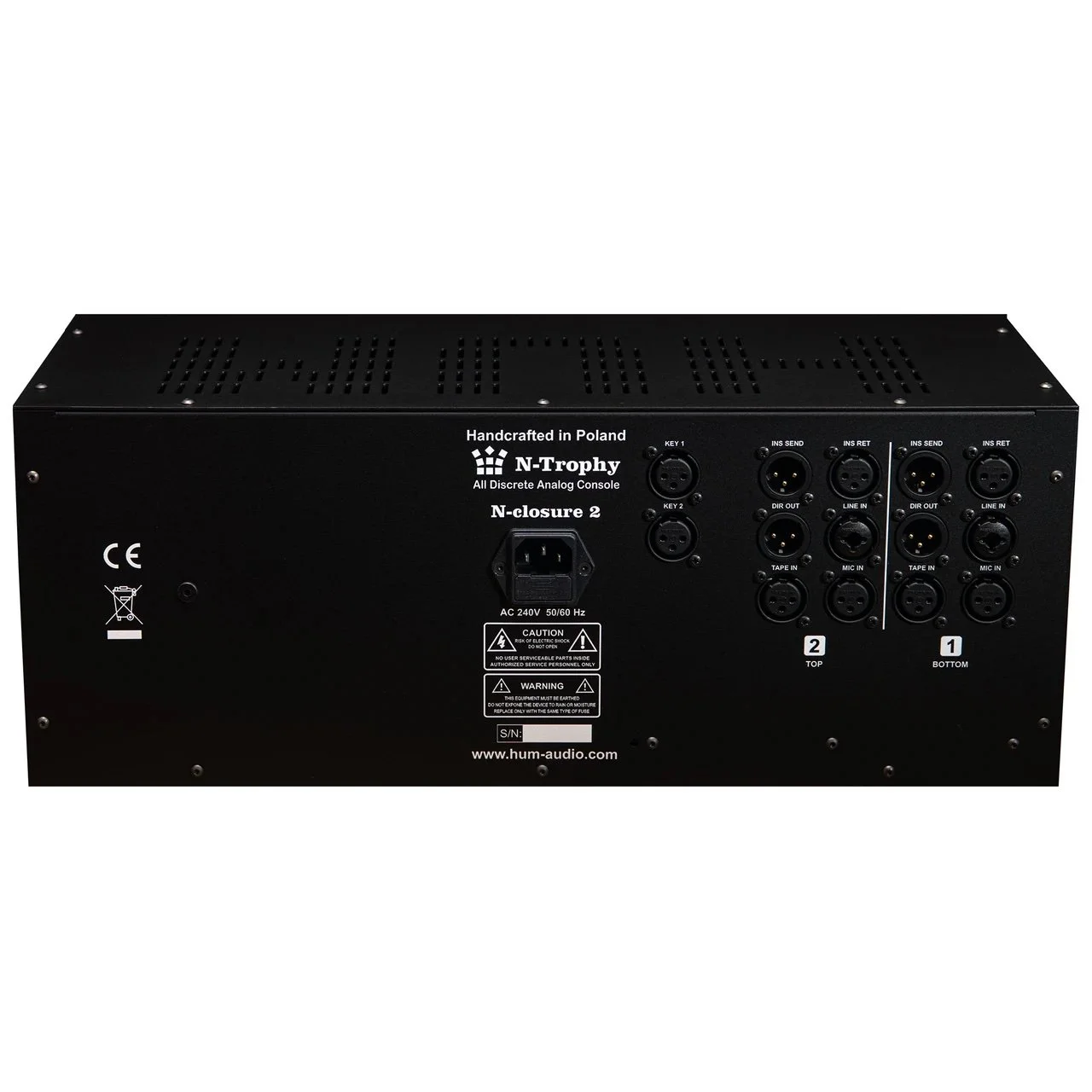

Input XLR (LINE, TAPE, INS SEND): balanced, impedance 10k Ohm
Output XLR (DIR OUT, INS RET): balanced, impedance 75 Ohm
Mic Input: balanced, impedance 3.5k Ohm
AC Powering: internally switchable 240V/120V ‑ 50/60Hz
Power Consumption꞉ max. 35 Watt (N‑closure2), max. 90 Watt (N‑closure6)
