Overview

Knif Mastering Controller is an audio mastering console featuring a vast array of processing and routing options for commanding the whole mastering chain. The console is built using state-of-the-art components and the result is a unit with unparalleled transparency and flexibility.

The controller features Elma® rotary controls and high-quality push buttons manufactured in Japan. The buttons are illuminated with a sophisticated touch and a nice low volume “click”.

The controller can be equipped with a built-in AES/EBU router for selecting between a multitude of digital sources, thus narrowing down the amount of DAC channels required.

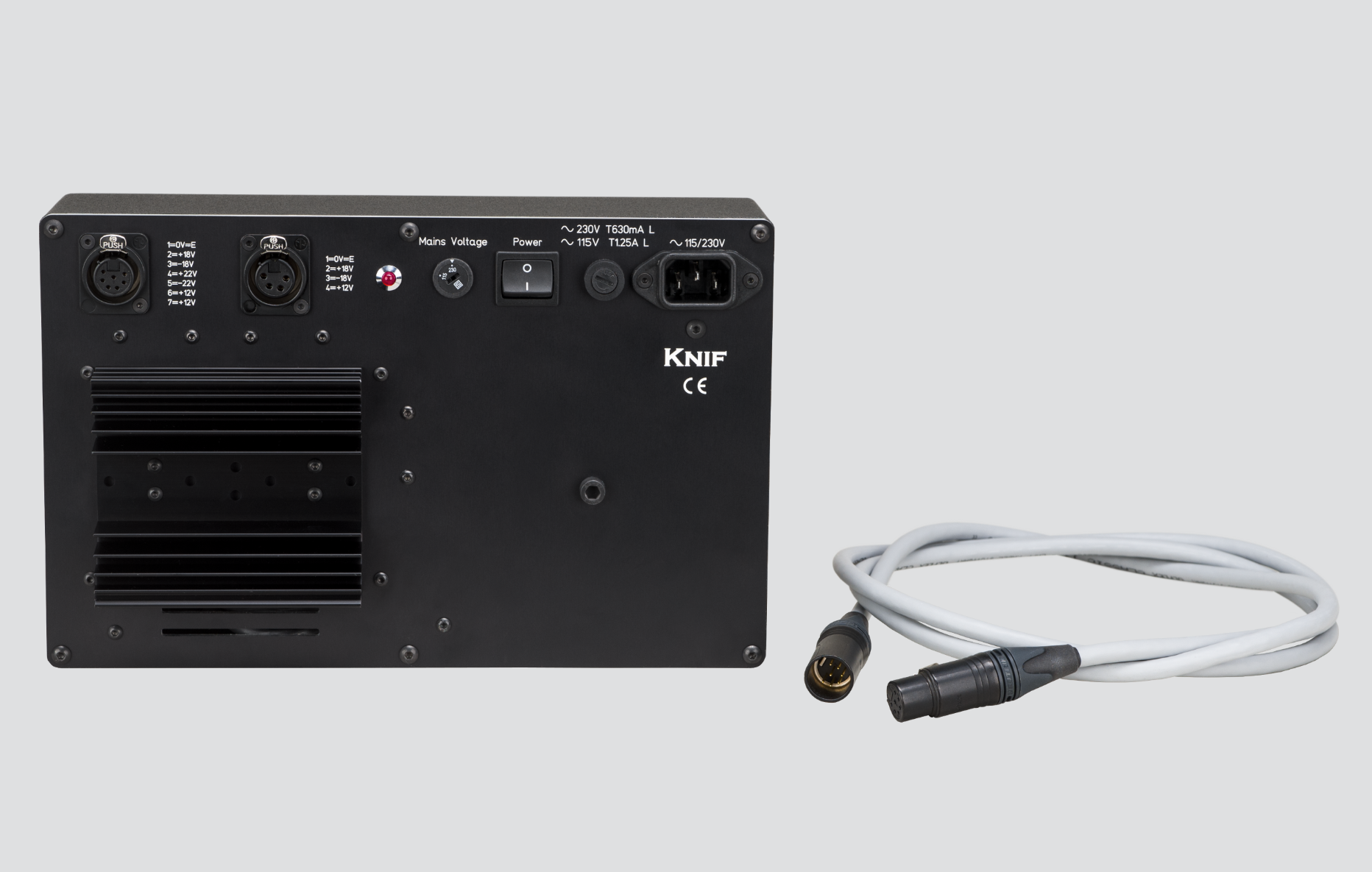

As default, the unit operates with an external power supply but also an analog 2U metering bridge with a built-in power supply is available.

Mastering Controllers are exclusively built to order.

INPUT SECTION

• Four selectable analog inputs

• Separate phase inverts for left and right

• Low-cut and high-cut filters with 12 / 24 dB/oct slopes

• Separate input gain controls for left and right

TRANSFER SECTION

• Six fully bypassable insert points with powerful functions:

  • MS for inserts 1 – 2

  • Swap for inserts 2 – 3 and 4 – 5

  • Parallel for insert 3

  • Insert 6 can be moved to post output

• Image processor with stereo width control and elliptic filtering capability

• Gain and bypassable master fader

MONITOR SECTION

• Four external monitor sources

• Total of 12 monitor selectors

• 2 monitor outputs

• Four monitoring modes:

  • Stereo

  • Mono

  • Swap LR

  • Side (Mono)

• Monitor offset (configurable for any monitor source)

• Digitally controlled monitor volume with a 47-position rotary switch

• -15 dB DIM button

• Class-A headphone amplifier with an individual volume control

• Meter output featuring a separate -6 dB pad

• Separate activation for both channel outputs

2 YEAR FACTORY WARRANTY! Pro Audio Toys is an Authorized KNIF Audio Dealer
